Obfuscar Documentation

Attention

Obfuscar 3.0 Beta is now available!

Version 3.0 is a major upgrade with:

  • Significant performance improvements (modern IL pipeline, no Mono.Cecil)

  • Better .NET language feature support (recent async/LINQ patterns)

  • Stricter configuration (absolute paths only, no variable expansion)

Install via:

  • Global Tool (console): dotnet tool install --global Obfuscar.GlobalTool --prerelease

  • NuGet Package (.NET Framework/projects): dotnet package add Obfuscar --prerelease

Without --prerelease, the stable version 2.2 is installed.

Warning

Obfuscar 3.0 configuration files must use absolute paths for InPath, OutPath, and LogFile. Relative paths are rejected.

Warning

Obfuscar 3.0 does not expand environment variables or $(...) placeholders in configuration files. Provide explicit values.

Note

It is recommended to generate the Obfuscar XML configuration file as part of your build or CI pipeline. Expand environment variables and resolve relative paths during generation so the produced XML contains only absolute paths and explicit values.

General

Obfuscar is a basic obfuscator for .NET assemblies. It uses massive overloading to rename metadata in .NET assemblies (including the names of methods, properties, events, fields, types and namespaces) to a minimal set, distinguishable in most cases only by signature.

For example, if a class contains only methods that accept different parameters, they can all be renamed ‘A’. If another method is added to the class that accepts the same parameters as an existing method, it could be named ‘a’.

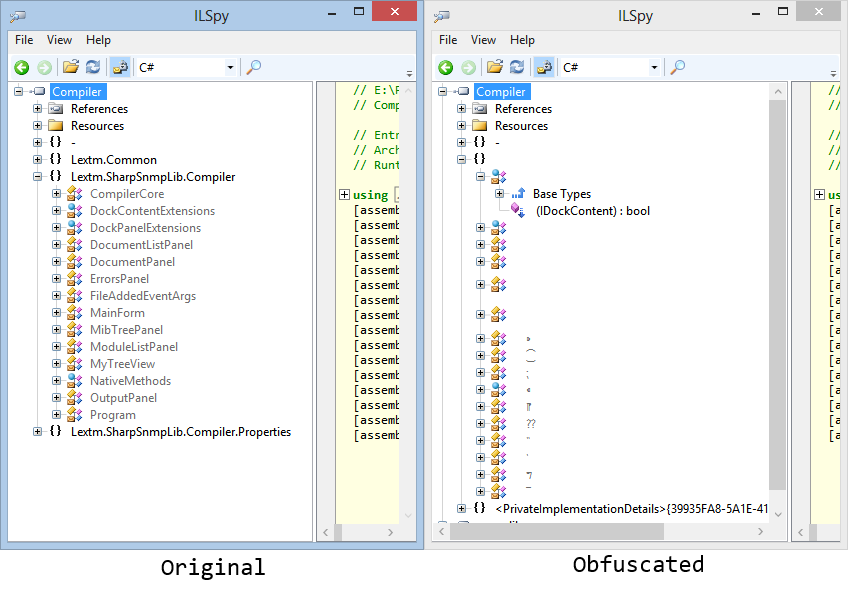

It makes decompiled code very difficult to follow. The wiki has more details about What It Does.

_images/obfuscar.png

The current release is Obfuscar 2.x. The project historically used the Mono.Cecil library for metadata handling. With the upcoming v3 release Obfuscar has been refactored to use System.Reflection.Metadata (SRM)-backed readers and mutable metadata abstractions; v3 will not have a runtime dependency on Mono.Cecil for its core obfuscation pipeline. See the developer notes for migration details.

Note

Since version 1.5 the attrib attribute is evaluated correctly. Be sure to check if there are any unintended attrib values from the example in your configuration file.

Its source code can be found at GitHub,

https://github.com/obfuscar/obfuscar

Obfuscar previously relied on Jb Evain’s Mono.Cecil for low-level metadata manipulation. The codebase has since moved to SRM/mutable adapters.

The documentation section includes the following topics,

Contribute to Documentation

The documentation on this site is the handiwork of our many contributors.

We accept pull requests! But you’re more likely to have yours accepted if you follow these guidelines:

Read the Contributing Guide.
